Boogaard Brokers

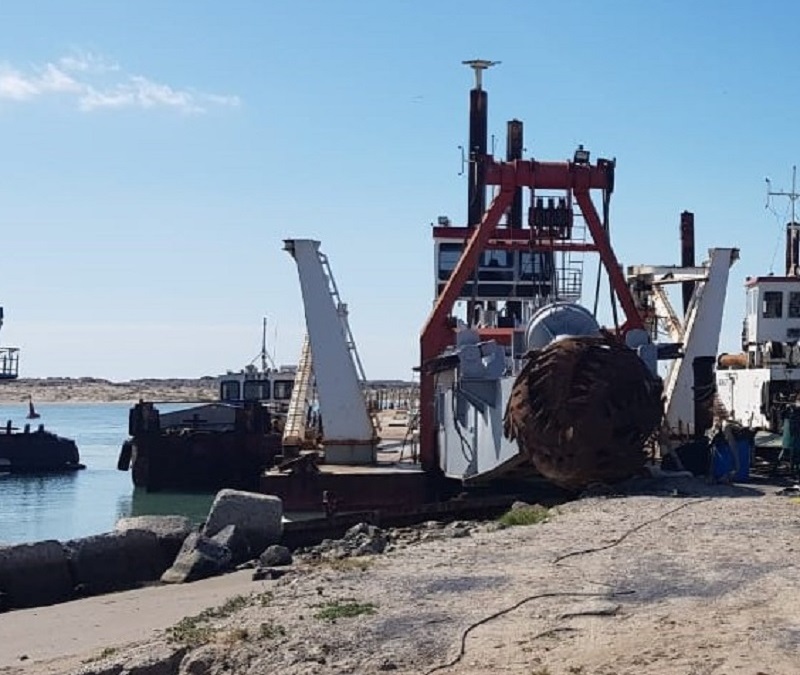

Modular csd with spudcarriage and anchor booms, pipe diam. 650 mm

Specifications
Type IHC Beaver 65 DDSP
Built/yard 2014, IHC The Netherlands
Classification Bureau Veritas I ✠ Hull ● Mach, Dredger - no propulsion Coastal Area, expired
Dimensions 43.50 x 12.40 x 3.00 m
loa: 58.00 m
Dredging depth 18 m
Pipe diameter 650/650 mm
Total installed power 2,819 kW
Cutter power 700 kW, hydr.
Submersible dredge pump driven by Caterpilllar 3516C serie II SCAC, 1,825 kW
Generator set 80 kW, make Leroy Somer
Spuds 2 x length 23.40 m, diam. 900 mm
Spud carriage stroke 4.50 m
Anchor booms yes
Further particulars recently dry-docked

Send me more information about: Folio no. CZ650.15
