8,600 m³ trailing suction hopper dredger

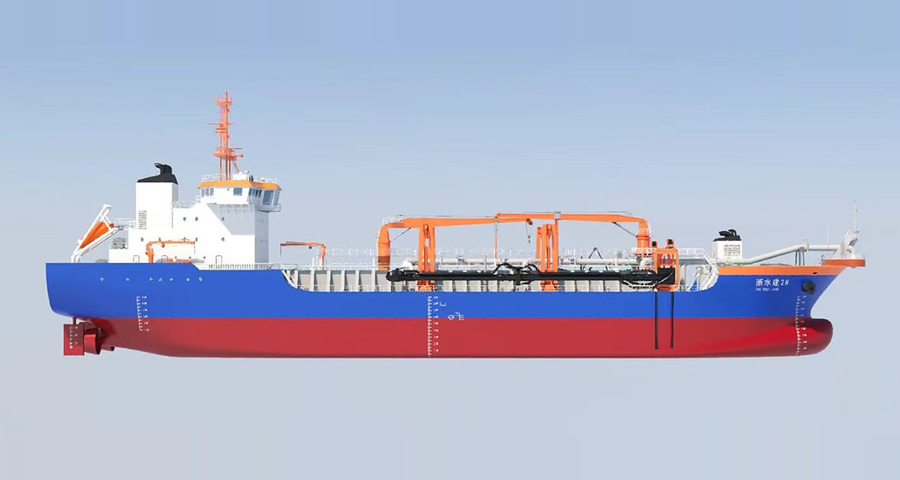

New HZ8600.01_900x480.png

This 8,600 m³ trailing suction hopper dredger is a newbuild, built in China in 2026 with ice class B notation. The dredger has a length of 118.38 m, a dredging depth of 30 m and an IHC dredge pump of 1,450 kW. For discharge ashore it has an IHC pump ashore installation of 1,920 kW with bow coupling and rainbow. Full specifications are available on request. See all trailing suction hopper dredgers for sale or our split hopper barges.

Specifications
Built/yard 2026/China
Classification ★ CSA Trailing Suction Hopper Dredger; Dredging Within R2; PSPC(B); Ice Class B
Dimensions (loa 118.38 m) 110.20 x 22.00 x 9.60 m
Draft 6.80 m

8.30 m (dredging)

Hopper capacity 8,600 m3
Dredging depth 30.00 m.
Dredge pump(s) make IHC 1,450 kW
Pump ashore installation pump make IHC 1,920 kW, bow coupling and rainbow
