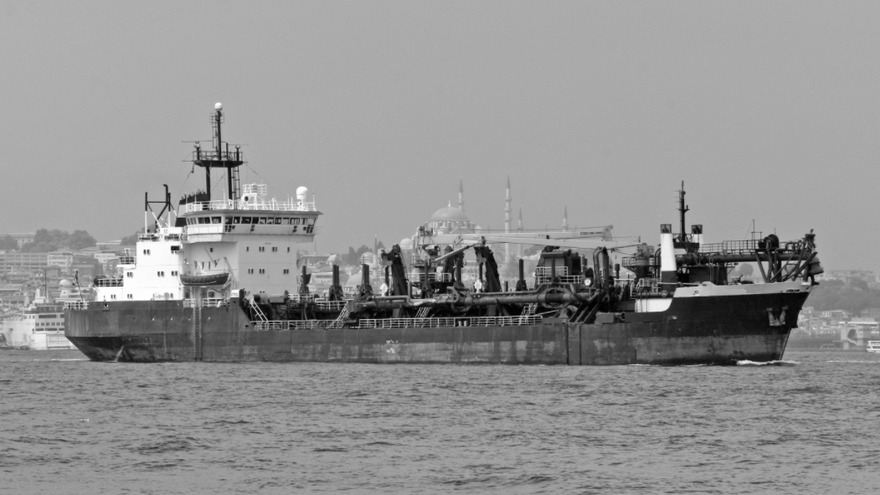

This twin screw trailing suction hopper dredger was built in Holland in 1973 and has a hopper capacity of approx. 4,720 m³. It measures 103.00 x 18.00 x 9.00 m, works with two trailing pipes and dredges to a maximum of 25 m. Two Vos dredge pumps, each driven by a Caterpillar 3516HD of 1,470 kW, fill the hopper, which discharges through 18 hydraulic bottom doors or via the 900 mm pump ashore installation at the bow. There are 32 berths on board. See all trailing suction hopper dredgers for sale or ask for a valuation.
| Specifications | |
|---|---|
| Type | tshd equipped with 2 trailing pipes, bottom doors and pump ashore installation |
| Built/yard | 1973, Holland |
| Dimensions | 103.00 x 18.00 x 9.00 m |
| Draft | max. 7.15 m |
| Hopper capacity | approx. 4,720 m3 / 7,200 tons |
| Propulsion | 2 x 2 Caterpillar, type D399, total output 3,353 kW, twin screw |
| Dredging depth | max. 25.00 m |
| Dredge pumps | 2, make Vos, each driven by Cat., type 3516HD, 1,470 kW/each |
| Bottom doors | 18 double bottom doors, dims. 4.00 x 4.00 m, hydr. operated |
| Pump ashore installation | via bow connection, pipe diam. 900 mm |
| Accommodation | 32 berths, air-conditioned |
