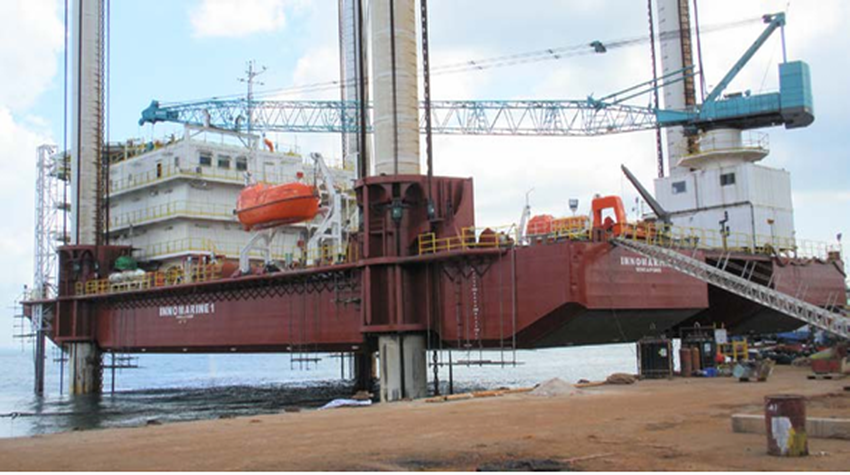

This offshore self-elevating platform was built in Singapore in 2006, upgraded in 2010 and is classed by Bureau Veritas. The 66.60 m platform stands on four legs of 52.10 to 61.20 m with a diameter of 2.50 m, for working depths from 4 to 35 m. The jacking system has a combined capacity of 6,400 t, and a Kobelco crane with 48 t at 12 m is installed on deck. See all jack-up barges for sale and our offshore vessels.
| Specifications | |
|---|---|
| Built/yard | Built 2006, Singapore
Upgraded 2010 |
| Classification | BV |
| Dimensions | (l.o.a. 66.60) 63.94 x 35.80 (hull 31.20) x 4.80 m |
| Legs | 4 legs , 61.20 - 52.10 m, diam 2.50 m |
| Working depth | 35 m, min working depth 4 m |
| Jackup system | Bow legs, (4 x 400kN, 37 Strands ea.): 1,600T Aft legs, (4 x 400kN, 37 Strands ea.): 1,600T Total combined jacking capacity: 6,400T |
| Crane | Kobelco 7250-2F 48T @ 12m, 31T @ 20m 48.77m |
