IHC Beaver 6518C with spud carriage and anchor booms
IHC Beaver 6518C with spud carriage and anchor booms

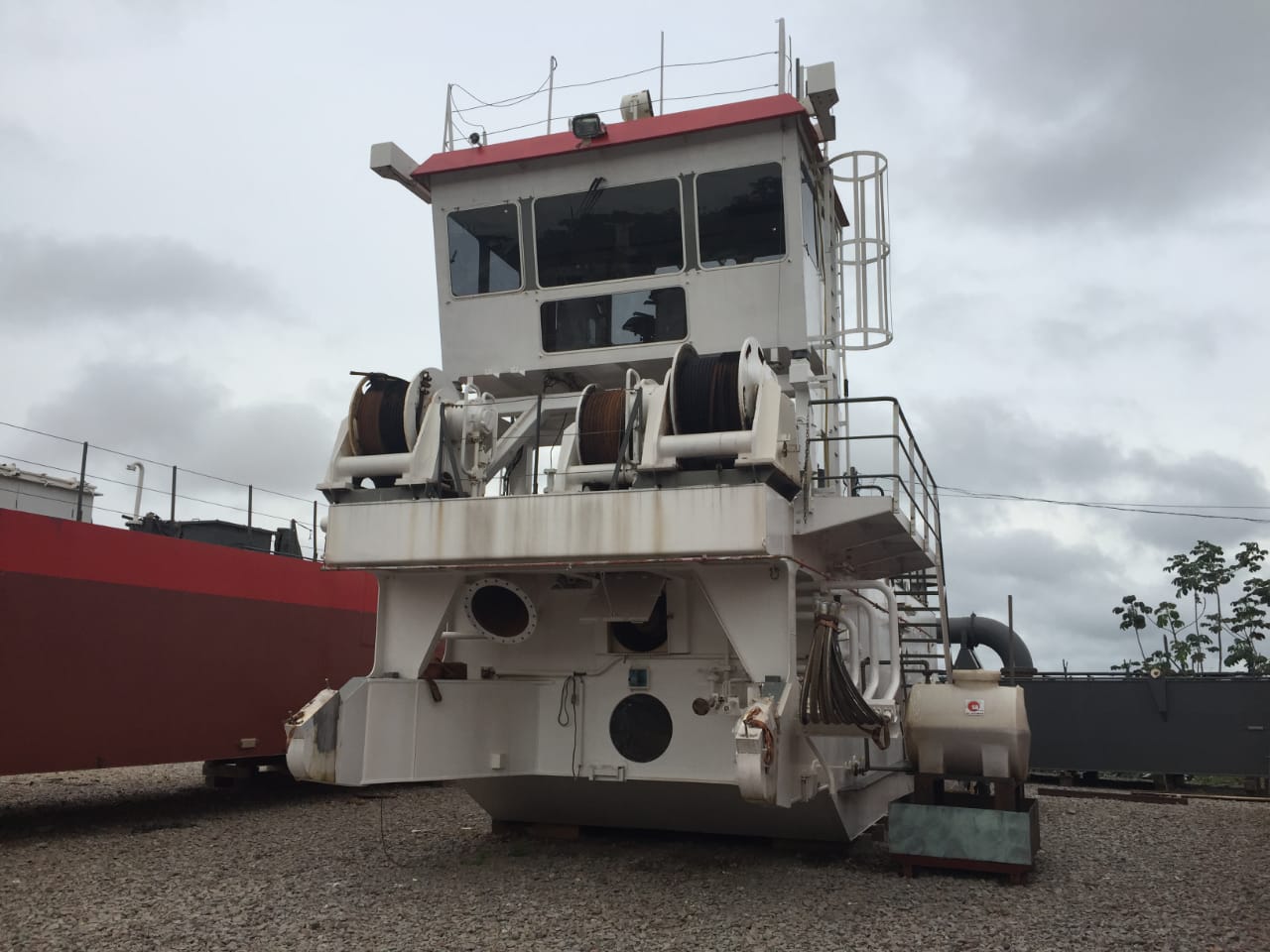

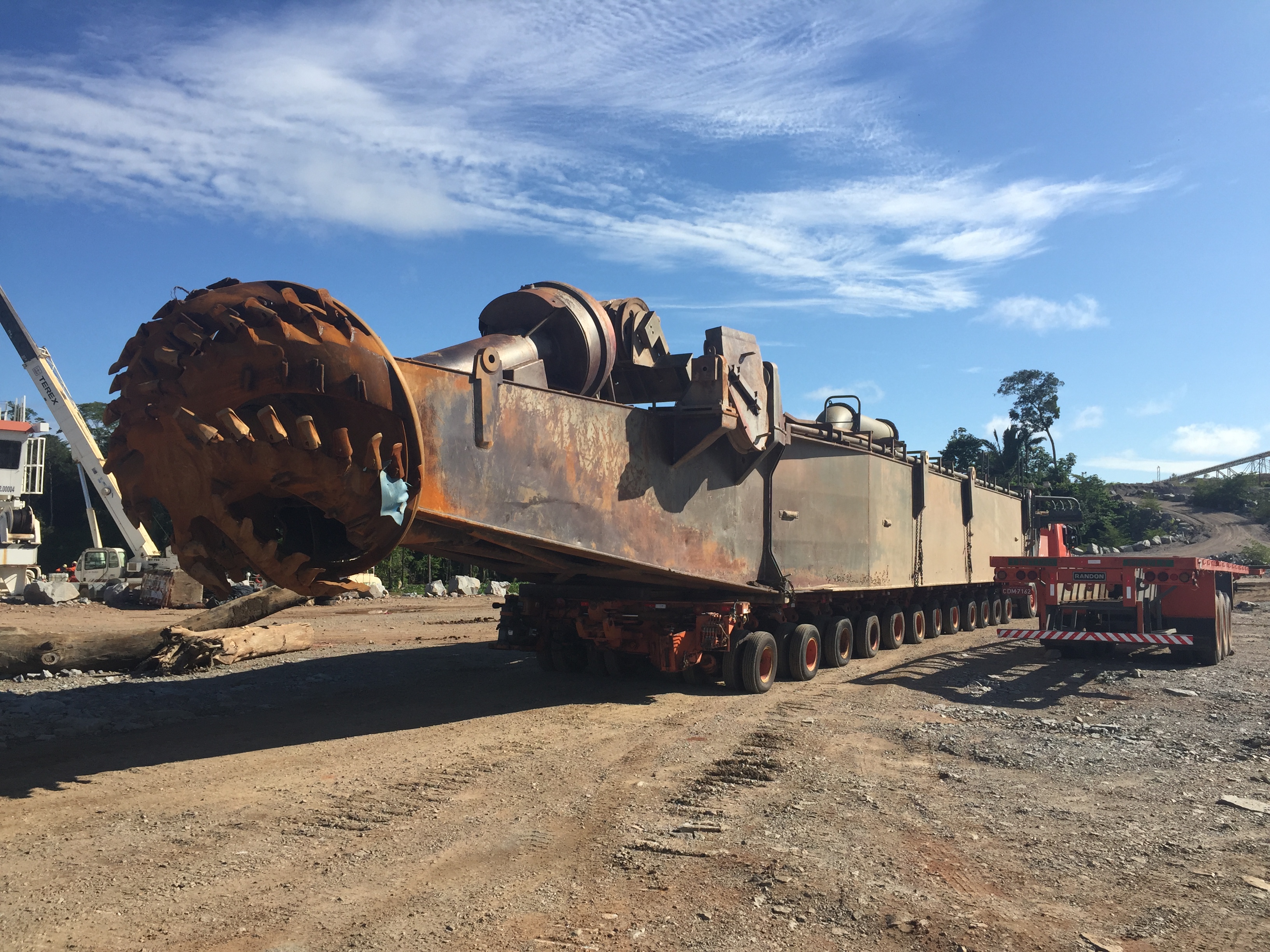

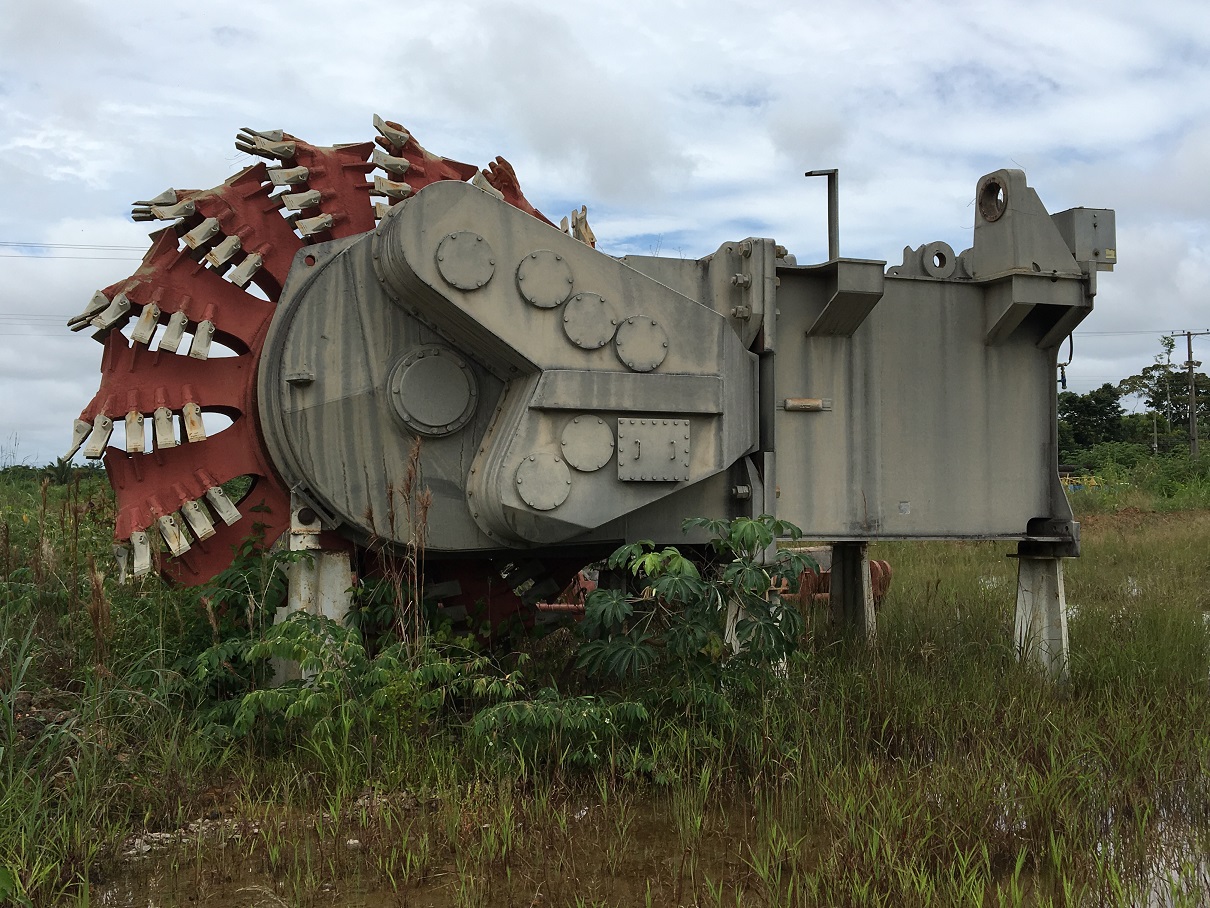

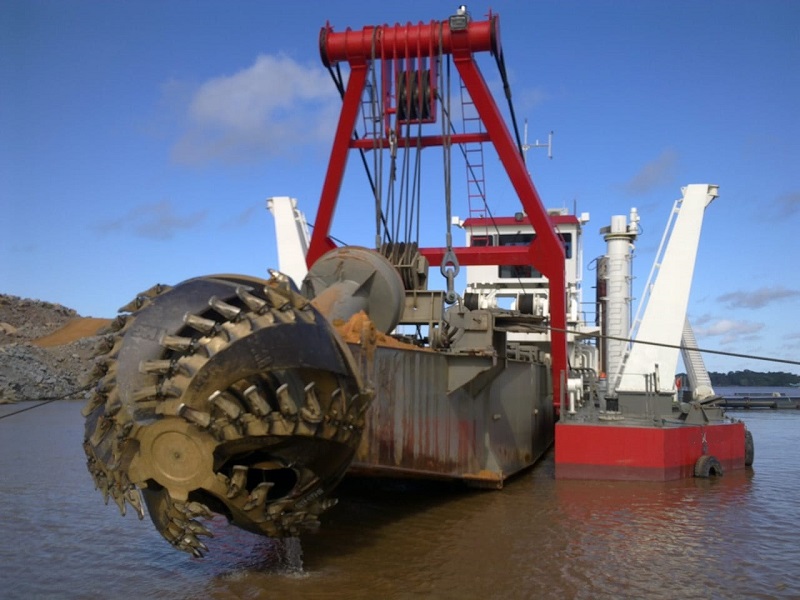

This IHC Beaver 6518C cutter suction dredger was delivered in the Netherlands in 2010 and is classed by Bureau Veritas. The pontoon measures 32.50 x 12.45 x 2.95 m (47.20 m overall). It has a 650 mm pipe diameter, a hydraulic cutter of 585 kW, a ladder pump of 1,641 kW and a maximum dredging depth of 18 m. Two hydraulic spuds of 23.40 m, a spud carriage with a 3.65 m stroke and anchor booms are fitted. See all cutter suction dredgers for sale and our booster stations.
| Specifications | |
|---|---|
| Type | IHC Beaver 6518C |
| Delivery/yard | 2010/The Netherlands |
| Classification | Bureau Veritas |
| Dimensions | 32.50 x 12.45 x 2.95 m. Loa 47.20 m |
| Pipe diameter | 650/650 mm |
| Dredging depth | max. 18.00 m |
| Cutter power | 585 kW, hydr. |
| Ladder pump | 1,641 kW |
| Spuds | 2, diam. 900 mm, length 23.40 m, weight 13 tons/each, hydr. operated |
| Spud carriage | stroke 3.65 m |
| Anchor booms | yes |
