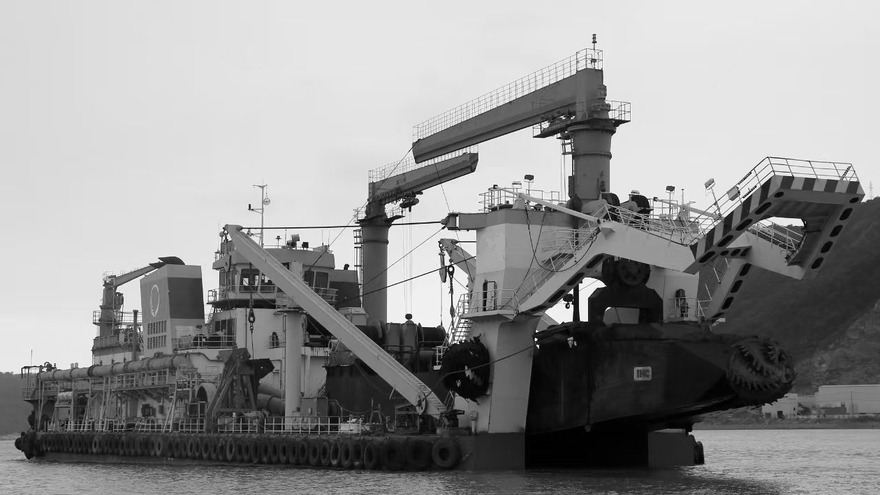

This IHC Beaver 8527 cutter suction dredger is fitted with a spud carriage and anchor booms. The pontoon measures 83.30 x 18.20 x 5.15 m (116.10 m overall) with a draft of approx. 3.50 m. It has an 850 mm pipe diameter, an electric cutter of 1,100 kW and a maximum dredging depth of 27 m. Total installed power is 13,671 kW, including three Caterpillar 3516B generator sets of 1,717 kW each, with tilting spuds of 42 m and a 4 m spud carriage stroke. See all cutter suction dredgers for sale and our booster stations.
| Specifications | |
|---|---|
| Type | IHC Beaver 8527, with spud carriage and anchor booms |
| Dimensions | 83.30 x 18.20 x 5.15 m. L.o.a. 116.10 m |
| Draft | approx. 3.50 m |
| Pipe diameter | 850/850 mm |
| Dredging depth | max. 27.00 m |
| Cutter power | 1,100 kW electr. |
| Diesel engine(s) | total installed 13,671 kW |
| Generator sets | 3, each driven by Caterpillar CAT3516B, 1,717 kW. |
| Spuds | diam. approx. 1.6 m., length 42 m, tilting installation |
| Spud carriage | yes, stroke 4.00 m |
