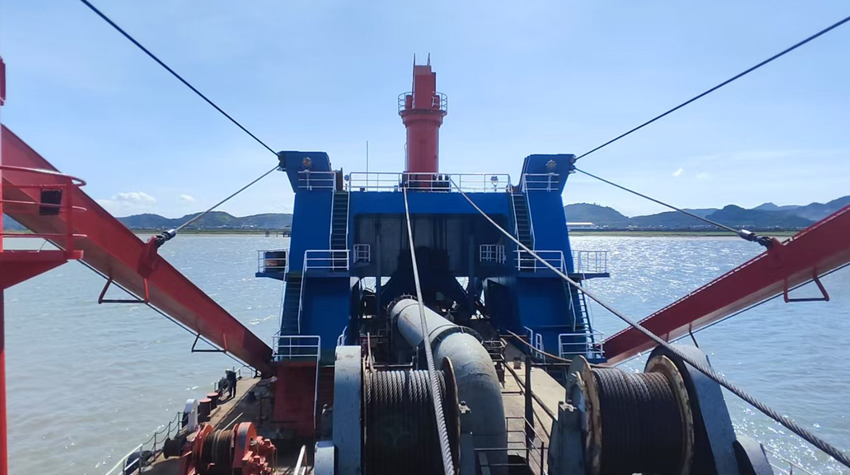

This heavy duty cutter suction dredger was built in China in 2011 under CCS class and is offered including workboat and floating pipeline. It has a length of 97 m, a pipe diameter of 1,200/1,100 mm, a 2,300 kW electric cutter and a dredging depth of 27 m. Installed power comes from a MAN 14V40/45 diesel engine of 8,470 kW, with a 5,085 kW ladder pump and two 45 m spuds on a tilting spud carriage. See all cutter suction dredgers for sale and our booster stations.
| Specifications | |
|---|---|
| Built/yard | 2011, China |
| Classification | CCS |
| Dimensions | 85.20 x 20.40 x 5.20, LOA 97.00 m
|
| Pipe diameter | 1200/1100 mm |
| Dredging depth | 27.00 m |
| Cutter power | 2,300 kW electr. |
| Diesel engine(s) | 1 x MAN 14V40/45, 8470 kW, 600 rpm |
| Ladder pump | 5085 kW (1x dredging, 25,000 m3/h, 50m head) |
| Inboard pump | 1x 8220 kW submersible pump |
| Spuds | 2x Ø1700 mm, Length: 45 m, Tilting Installation with Carriage |
