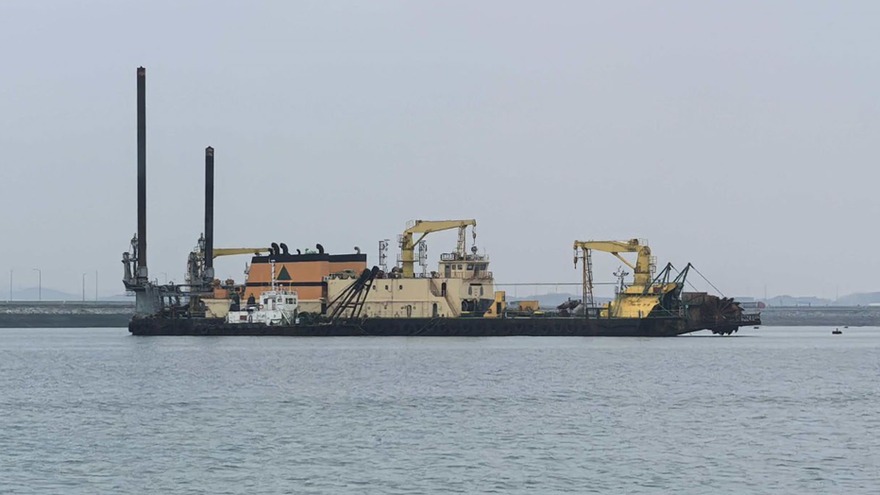

This bucket wheel suction dredger was built in Korea in 1995 to an O&K design. Instead of a cutter head, a rotating bucket wheel loosens the soil before it is pumped away. The dredger measures 85.00 x 19.00 m, has a 950/900 mm pipe diameter and dredges to 30 m. Two inboard pumps of 4,000 kW each are installed, with a total installed power of approx. 14,400 kW, 45 m spuds and a 6 m spud carriage stroke. See all cutter suction dredgers for sale or ask for a valuation.
| Specifications | |
|---|---|
| Type | Bucket wheel dredger |
| Delivery/yard | 1995 / Korea (O&K design) |
| Dimensions | 85.00 x 19.00 x 5.50 m |
| Pipe diameter | 950/900 mm |
| Dredging depth | max. 30.00 m |
| Inboard pumps | 2, 4,000 kW each |
| Total installed power | approx. 14,400 kW |
| Spuds | Length of spud: 45m Diameter: 1,300mm
|
| Spud carriage | stroke 6 m |
| Anchor booms | no |
| Deck crane | 2, lifting cap. approx 10 ton, |
