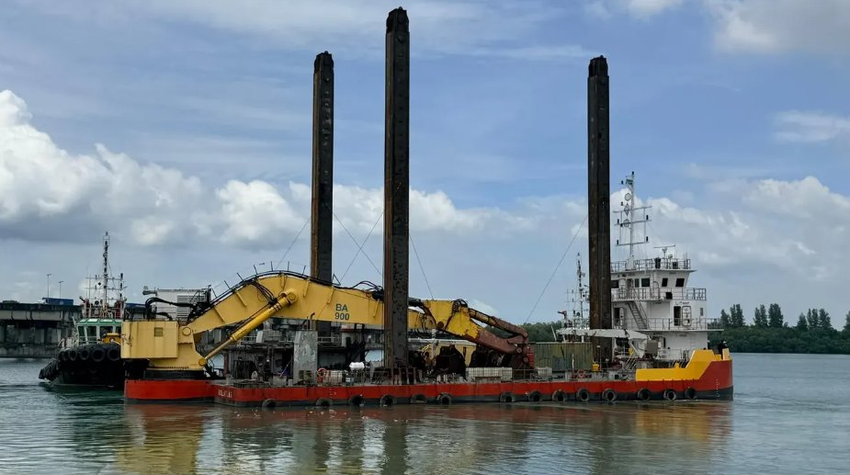

This backhoe dredger was built in 2008 and measures 55.00 x 19.00 x 3.50 m. A Cummins QSK 60-M power pack of 1,900 kW drives the excavator, which reaches a maximum depth of 21 m with a 20 m boom and 10 m stick, using buckets of 5 to 12 m³. Three hydraulically tilting spuds of 32 m and a spud carriage with a 10 m stroke give stable positioning, and two thrusters of 350 kW each make the dredger self-manoeuvring. There is accommodation for 9 crew. See all backhoe dredgers for sale and our split hopper barges.
| Specifications | |
|---|---|
| Built | 2008 |
| Wave height | max. 2.50 m during dredging operation |
| Dimensions | 55.00 x 19.00 x 3.50 m |
| Excavating depth | max. 21.00 m (with boom/stick configuration 20 m/ 10 m)
19 m (with boom/stick configuration 20 m/ 7 m) |
| Power pack | Cummins, type QSK 60-M, 1900 kW Cummins, type QSK 11 D-M, 310 kW, in engine room belowdecks |
| Boom/stick configuration | monoblock 16 m/ stick 7 m (stick spare 10 m) |
| Bucket capacity | 12 m3, 9 m3, 7 m3 and 5 m3 |
| Spud carriage | stroke 10.00 m |
| Spuds | 3 spuds, length 32.00 m, square 1,600 mm, hydr. tilting spuds, heavy built spud casing |
| Propulsion | 2 thrusters for self manoeuvring, 350 kW/each |
| Accommodation | 9 crew |
